DMA SENTRY SYSTEM


Vehicle Surveillance & Goods Monitoring Solution


The DMA Sentry System is advanced vehicle surveillance and goods tracking solution specifically developed to enhance security, visibility, and accountability in freight logistics. Designed for deployment on trucks, this system utilizes high-definition video surveillance cameras integrated with smart analytics to monitor the movement and status of goods throughout transit. The Sentry System is designed to monitor intrusion while trying to steal the goods from the truck with real-time video streaming.


Key Features

1. Real-Time Video Monitoring

Multiple HD cameras (one in the cargo bay and another monitoring the driver) are strategically placed around the vehicle. Live video feeds are transmitted to a central control room or cloud platform for real-time monitoring by security personnel or fleet managers.

2. Goods Tracking and Tamper Detection

The system continuously records loading, unloading, and in-transit activity. Motion and door contact sensors, combined with AI algorithms, detect and flag any unauthorized access, tampering, or suspicious behavior within the cargo hold.

3. Event-Based Alerts

Alerts are automatically triggered for anomalies such as unauthorized door openings, route deviations, or prolonged stops. Notifications are sent instantly to designated personnel via mobile or desktop dashboards.

4. GPS Integration

Integrated GPS modules provide real-time location tracking and geofencing capabilities. Video footage is automatically tagged with time and location data for forensic review and logistics auditing.

5. Cloud & SD Card Storage and Playback

Recorded footage is securely stored in the cloud or on a local NVR (Network Video Recorder). Authorized users can easily review historical data to investigate incidents or verify delivery processes.

6. Driver and Cargo Safety

Front-facing cameras capture road activity, driver behavior, and traffic conditions, supporting accident analysis and insurance claims resolution.


Benefits

Enhanced Cargo Security: Reduces the risk of theft, loss, or damage during transport.

Operational Transparency: Provides verifiable visual records of cargo handling and transit conditions.

Compliance Support: Helps meet industry regulations and client requirements for supply chain visibility.

Incident Resolution: Streamlines investigations and supports rapid dispute resolution with visual evidence.

Applications


• Logistics companies

• Retail and FMCG supply chains

• Pharmaceuticals and sensitive cargo

• Government and military transport


Technical Specifications

📷 Camera & Video System

• Camera Type: HD/Full HD IP Cameras (720p / 1080p)
• Camera Count: Up to 6 (2 exterior, 4 interior cargo bay)
• Frame Rate: 25–30 FPS (configurable)
• Night Vision: IR-enabled for low-light/night operations
• Field of View: Wide-angle (90°–120°)
• Video Compression: H.264 / H.265

📡 Connectivity & Transmission

• 4G LTE / 5G Cellular Modem, Wi-Fi fallback
• Real-time streaming or batch uploads
• Dual SIM slots for redundancy
• Optional Ethernet for depots

🛰️ Location Tracking & Telemetry

• Integrated GNSS (GPS), ±2.5m accuracy
• Geofencing with alerts
• Video tagged with time/location data

🚪 Sensor & Alert Systems

• Magnetic or IR door sensors
• Motion sensors with accelerometers
• Event Alerts (SMS/Email/Platform):
- Unauthorized access
- Door opened in transit
- Idle time threshold
- Route deviation

🧠 System Intelligence & Storage

• Optional AI: Object/person detection, analytics
• Storage: SSD/HDD up to 2TB, or encrypted cloud (30–90 days)
• Power: 9V–36V DC with 2-hr backup battery

🖥️ User Interface & Integration

• Web dashboard & Mobile App (iOS/Android)
• Live multi-camera view
• Event-filtered playback
• RESTful API for ERP/Fleet systems

📦 Package Inclusions

• HD/IP Cameras (up to 6)
• DVR/NVR Unit
• GPS/Telemetry Unit
• Door/Motion Sensor Kit
• Connectivity Antennas
• Optional cloud subscription
• Installation & setup

🛠️ Optional Add-ons

• Driver-facing camera
• Panic alert button
• AI module (e.g., smoke detection, cargo counting)
• Solar backup power kit

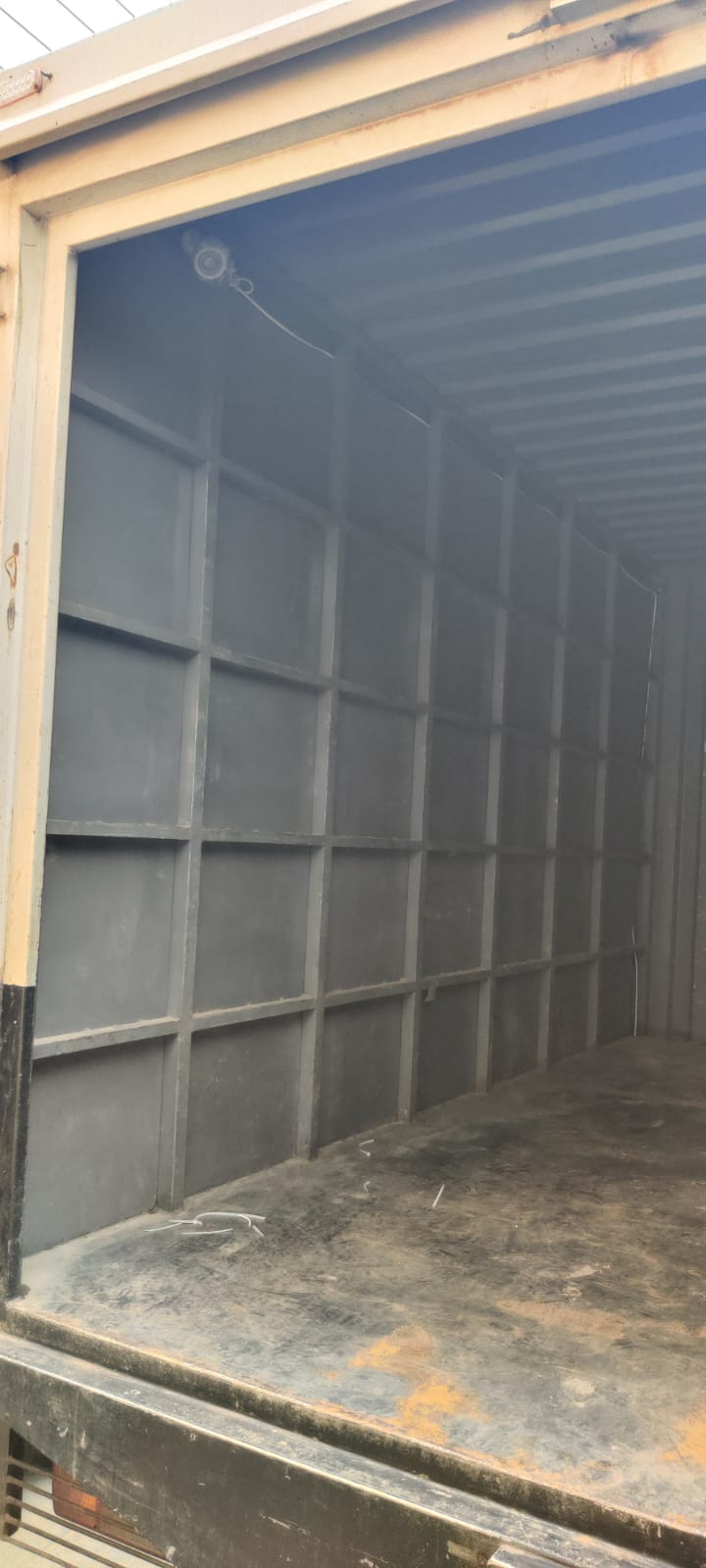

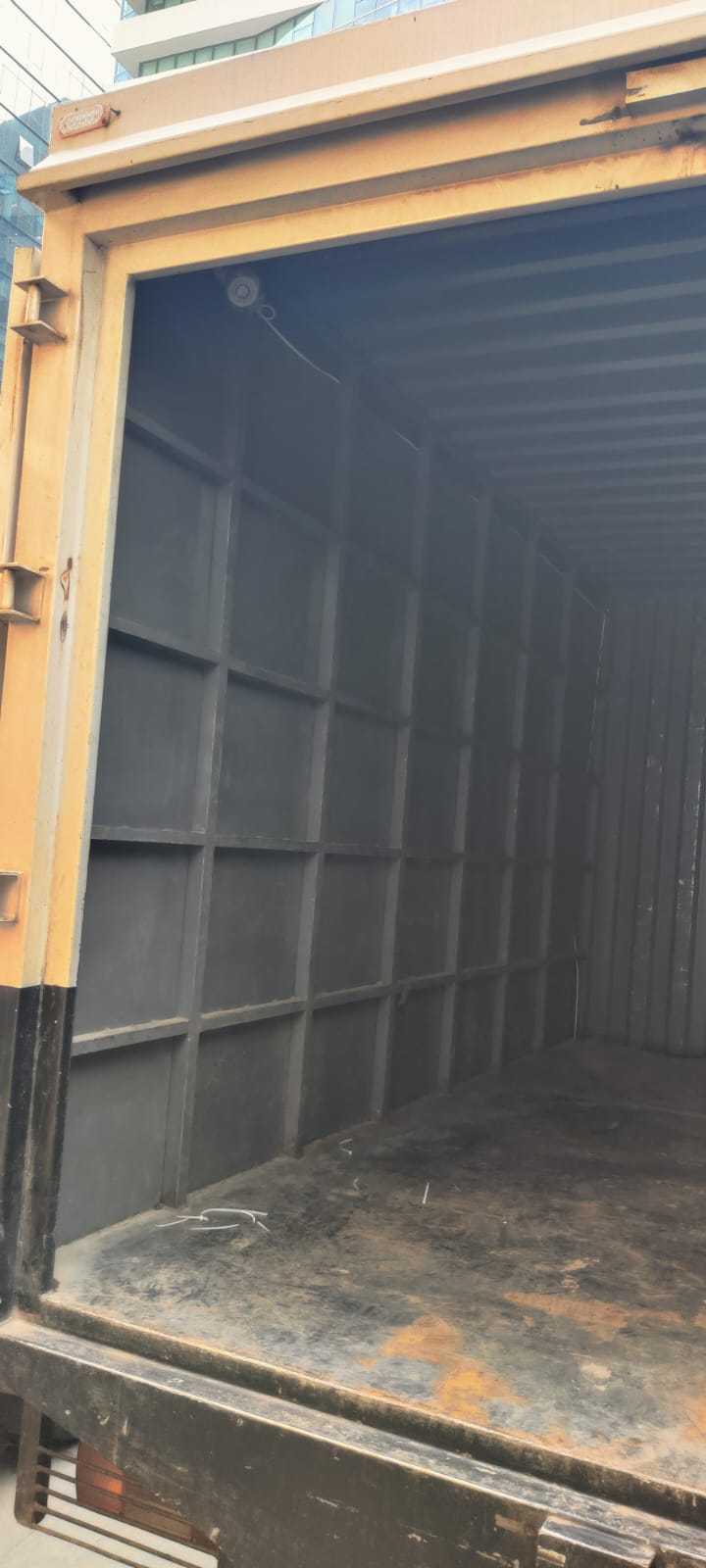

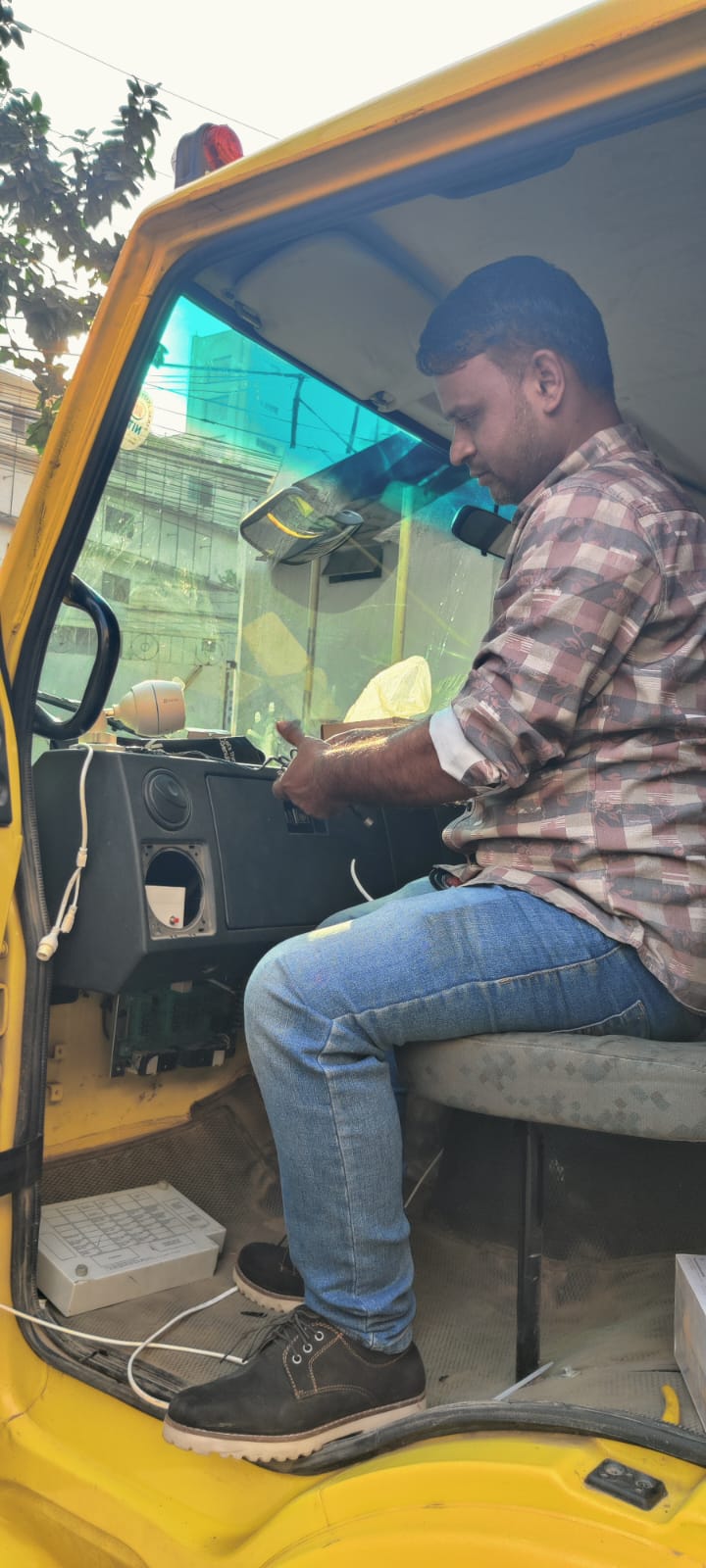

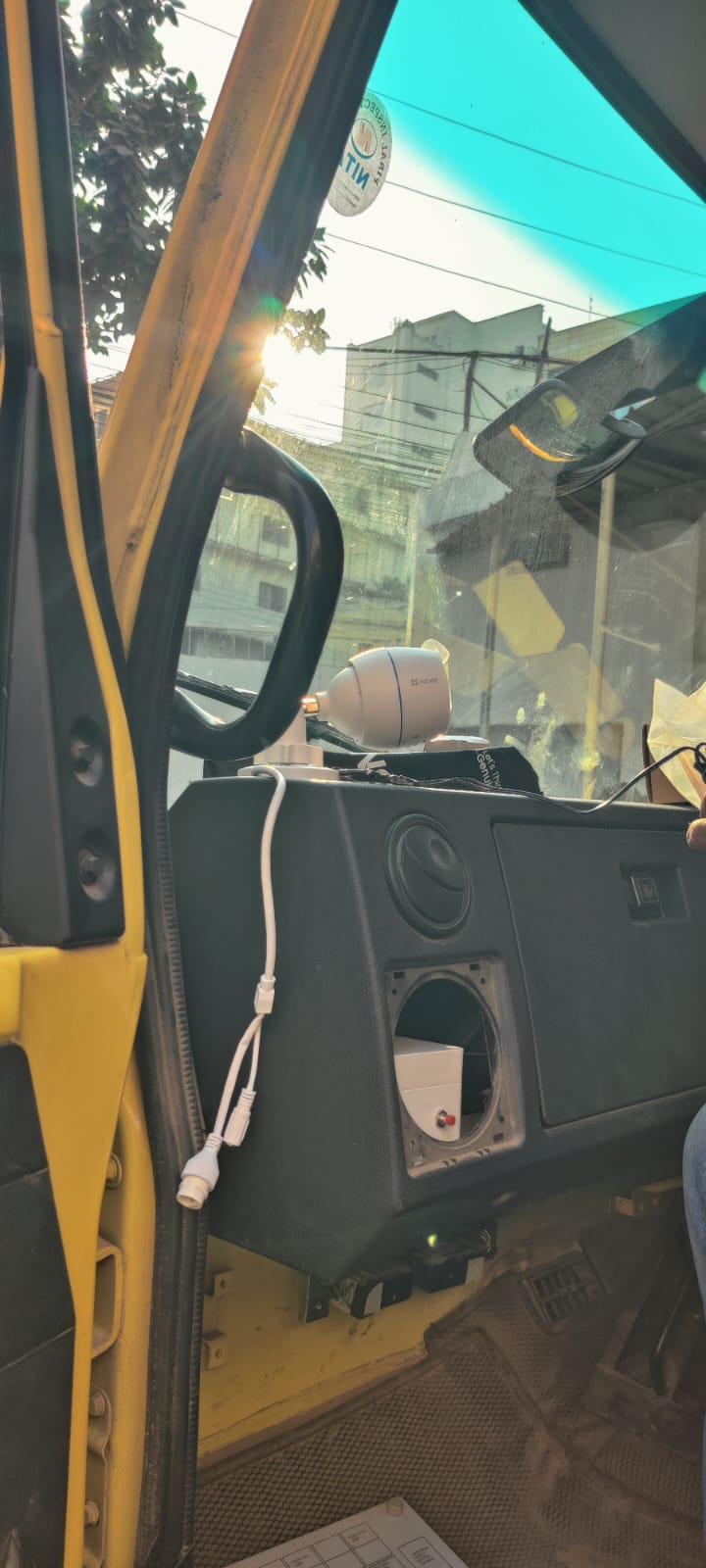

SOME OF OUR
SENTRY SYSTEM PHOTOS
